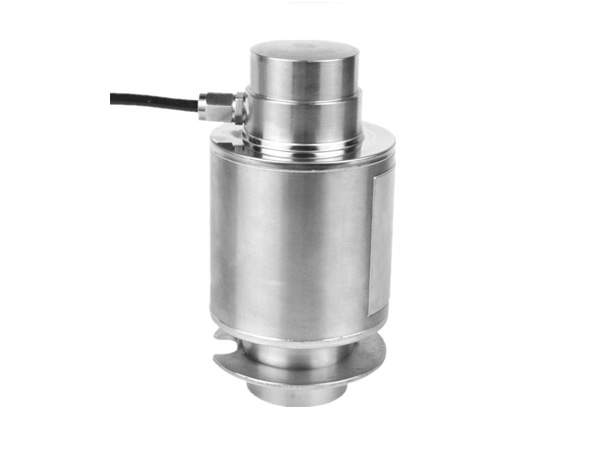

ZSF-A
350 ohm loadcell.
High precision and stability.
Suitable for truck scales, railway scales, axle-load scales and floor scales.
Technical Specifications
|
Accuracy Class |
OIML C2 ~ C5 |
Temperature effect on span (%FS/10oC) |
0.02 |
|
Rated output (mV/V) |
2.0 ± 0.002 |
Temperature effect on zero (%FS/10oC) |
0.02 |
|
Combined Error (%FS) |
0.02 |
Temperature, compensated (oC) |
-10 ~+40 |
|
Non-linearity (%FS) |
|
Temperature, operating (oC) |
-30 ~+70 |
|
Non-repeatability (%FS) |
|
Excitation, recommended (V) |
10~12(DC) |
|
Creep (%FS/30min) |
|
Excitation, Max. (V) |
15(DC) |
|
Input Resistance (Ω) |
400 ± 10 |
Safe Overload (%FS) |
150 |
|
Output Resistance (Ω) |
352 ± 3 or 352 ± 5 |
Ultimate Overload (%FS) |
250 |
|
Insulation Resistance (MΩ) |
≥5000(50VDC) |
Protection Class |
IP 68 |
|
Zero Balance (%FS) |
1.0 |
Cable length (m) |
8-16 |
|
|
|
Cable Spec 4-wire cable |
5 mm |
